java-design-patterns/async-method-invocation

title, category, language, tags

title	category	language	tags
Async Method Invocation	Concurrency	en	Reactive

Intent

Asynchronous method invocation is a pattern where the calling thread is not blocked while waiting results of tasks. The pattern provides parallel processing of multiple independent tasks and retrieving the results via callbacks or waiting until everything is done.

Explanation

Real world example

Launching space rockets is an exciting business. The mission command gives an order to launch and after some undetermined time, the rocket either launches successfully or fails miserably.

In plain words

Asynchronous method invocation starts task processing and returns immediately before the task is ready. The results of the task processing are returned to the caller later.

Wikipedia says

In multithreaded computer programming, asynchronous method invocation (AMI), also known as asynchronous method calls or the asynchronous pattern is a design pattern in which the call site is not blocked while waiting for the called code to finish. Instead, the calling thread is notified when the reply arrives. Polling for a reply is an undesired option.

Programmatic Example

In this example, we are launching space rockets and deploying lunar rovers.

The application demonstrates the async method invocation pattern. The key parts of the pattern are AsyncResult which is an intermediate container for an asynchronously evaluated value, AsyncCallback which can be provided to be executed on task completion and AsyncExecutor that manages the execution of the async tasks.

public interface AsyncResult<T> {
  boolean isCompleted();
  T getValue() throws ExecutionException;
  void await() throws InterruptedException;
}

public interface AsyncCallback<T> {
  void onComplete(T value, Optional<Exception> ex);
}

public interface AsyncExecutor {
  <T> AsyncResult<T> startProcess(Callable<T> task);
  <T> AsyncResult<T> startProcess(Callable<T> task, AsyncCallback<T> callback);
  <T> T endProcess(AsyncResult<T> asyncResult) throws ExecutionException, InterruptedException;
}

ThreadAsyncExecutor is an implementation of AsyncExecutor. Some of its key parts are highlighted next.

public class ThreadAsyncExecutor implements AsyncExecutor {

  @Override
  public <T> AsyncResult<T> startProcess(Callable<T> task) {
    return startProcess(task, null);
  }

  @Override
  public <T> AsyncResult<T> startProcess(Callable<T> task, AsyncCallback<T> callback) {
    var result = new CompletableResult<>(callback);
    new Thread(
            () -> {
              try {
                result.setValue(task.call());
              } catch (Exception ex) {
                result.setException(ex);
              }
            },
            "executor-" + idx.incrementAndGet())
        .start();
    return result;
  }

  @Override
  public <T> T endProcess(AsyncResult<T> asyncResult)
      throws ExecutionException, InterruptedException {
    if (!asyncResult.isCompleted()) {
      asyncResult.await();
    }
    return asyncResult.getValue();
  }
}

Then we are ready to launch some rockets to see how everything works together.

public static void main(String[] args) throws Exception {
  // construct a new executor that will run async tasks
  var executor = new ThreadAsyncExecutor();

  // start few async tasks with varying processing times, two last with callback handlers
  final var asyncResult1 = executor.startProcess(lazyval(10, 500));
  final var asyncResult2 = executor.startProcess(lazyval("test", 300));
  final var asyncResult3 = executor.startProcess(lazyval(50L, 700));
  final var asyncResult4 = executor.startProcess(lazyval(20, 400), callback("Deploying lunar rover"));
  final var asyncResult5 =
      executor.startProcess(lazyval("callback", 600), callback("Deploying lunar rover"));

  // emulate processing in the current thread while async tasks are running in their own threads
  Thread.sleep(350); // Oh boy, we are working hard here
  log("Mission command is sipping coffee");

  // wait for completion of the tasks
  final var result1 = executor.endProcess(asyncResult1);
  final var result2 = executor.endProcess(asyncResult2);
  final var result3 = executor.endProcess(asyncResult3);
  asyncResult4.await();
  asyncResult5.await();

  // log the results of the tasks, callbacks log immediately when complete
  log("Space rocket <" + result1 + "> launch complete");
  log("Space rocket <" + result2 + "> launch complete");
  log("Space rocket <" + result3 + "> launch complete");
}

Here's the program console output.

21:47:08.227 [executor-2] INFO com.iluwatar.async.method.invocation.App - Space rocket <test> launched successfully
21:47:08.269 [main] INFO com.iluwatar.async.method.invocation.App - Mission command is sipping coffee
21:47:08.318 [executor-4] INFO com.iluwatar.async.method.invocation.App - Space rocket <20> launched successfully
21:47:08.335 [executor-4] INFO com.iluwatar.async.method.invocation.App - Deploying lunar rover <20>
21:47:08.414 [executor-1] INFO com.iluwatar.async.method.invocation.App - Space rocket <10> launched successfully
21:47:08.519 [executor-5] INFO com.iluwatar.async.method.invocation.App - Space rocket <callback> launched successfully
21:47:08.519 [executor-5] INFO com.iluwatar.async.method.invocation.App - Deploying lunar rover <callback>
21:47:08.616 [executor-3] INFO com.iluwatar.async.method.invocation.App - Space rocket <50> launched successfully
21:47:08.617 [main] INFO com.iluwatar.async.method.invocation.App - Space rocket <10> launch complete
21:47:08.617 [main] INFO com.iluwatar.async.method.invocation.App - Space rocket <test> launch complete
21:47:08.618 [main] INFO com.iluwatar.async.method.invocation.App - Space rocket <50> launch complete

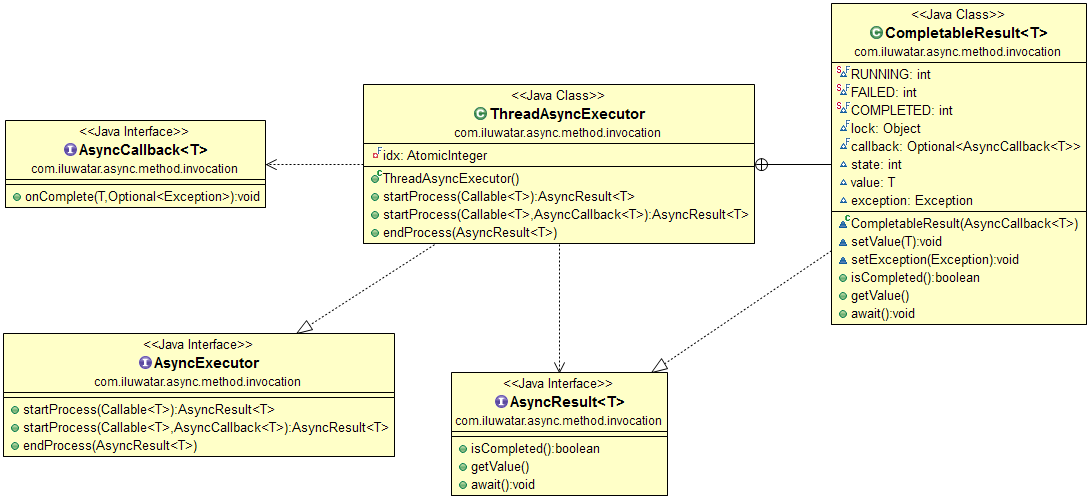

Class diagram

Applicability

Use the async method invocation pattern when

• You have multiple independent tasks that can run in parallel
• You need to improve the performance of a group of sequential tasks
• You have a limited amount of processing capacity or long-running tasks and the caller should not wait for the tasks to be ready

Real world examples

• FutureTask
• CompletableFuture
• ExecutorService
• Task-based Asynchronous Pattern
